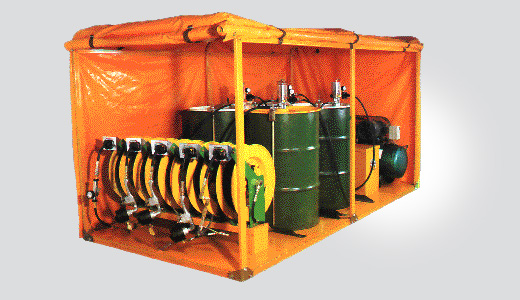

Flexible to be Mounted on Maintenance Truck,
Factory and Garage etc. or can be Built to customer's order.

Permanently fixed in garage Shops, The service hose of Hose Reel unit can be rollbacked by the force of recoil spring and pulled out to the best length convenient for application. Such device can protect the hose from damage and make best use of the work shop. There are four types of service hose, i.e. oil, grease, air and water available at the length of 10m and 15m respectively. Diameter, length and pressure resistance of hose can be made according customer's requirement.

Specifications :

Usage Model Service Hose
(inner dia*length)
DIMENSION Pressure
Resistance
Full Length Wheel dia. Full Width Weight
Grease THR-717-01 3/8 x 10m 560 mm 500£X 156mm 32Kg 350Kg/cm2
465£X
Oil THR-717-02 3/8 x 10m 560 mm 500£X 156mm 30Kg 70Kg/cm2
465£X
Air THR-717-03 3/8 x 10m 560 mm 500£X 156mm 30Kg 70Kg/cm2
465£X
Water THR-717-04 1/2 x 15m 560 mm 500£X 156mm 38Kg 250Kg/cm2
465£X
